3.2v 60ah lifepo4 battery cell 2C continuous discharge A grade lfp battery prismatic cell 60Ah

3.2v 60ah lifepo4 battery cell 2C continuous discharge A grade lfp battery prismatic cell 60Ah
  • If you are interested in this product, you can
  • Product Name:3.2v 60ah lifepo4 battery cell 2C continuous discharge A grade lfp battery prismatic cell 60Ah
  • Model:
  • Exhibitors:OSN BATTERY
  • Product Documentation:No Related Documents
Brief

Better price depends on the order quantity Suitable for solar, EV, marine and golf cart 2-3C discharging rate

Product Description

3.2v 60ah lifepo4 battery cell 2C continuous discharge A grade lfp battery prismatic cell 60Ah

(The more you buy ,the best price you will get)

3.2v 60ah lifepo4 battery cell 2C continuous discharge A grade lfp battery prismatic cell 60Ah

3.2v 60ah lifepo4 battery cell 2C continuous discharge A grade lfp battery prismatic cell 60Ah

3.2v 60ah lifepo4 battery cell 2C continuous discharge A grade lfp battery prismatic cell 60Ah



Specification



No.

Items

Specifications

1

Nominal Voltage

3.2V

2

Nominal Capacity

60Ah

3

Standard Charge Current

12A-30A (0.2C-0.5C rate)

4

Max. Charge Current

60A (1C rate)

5

Continuous Discharge current

2C (120A)

6

Peak Discharge Current

3C(180A)

7

Charge Cut-off Voltage

3.9V

8

Discharge Cut-off Voltage

2.0V

9

Inner Resistance

(Impedance)

 1  (At 0.2C rate, 2.0V cut-off)

10

Weight

1.821Kg

11

Dimensions

Length:     217mm(222mm)

Width:      135mm

Thickness:   29mm


Cells Overviews

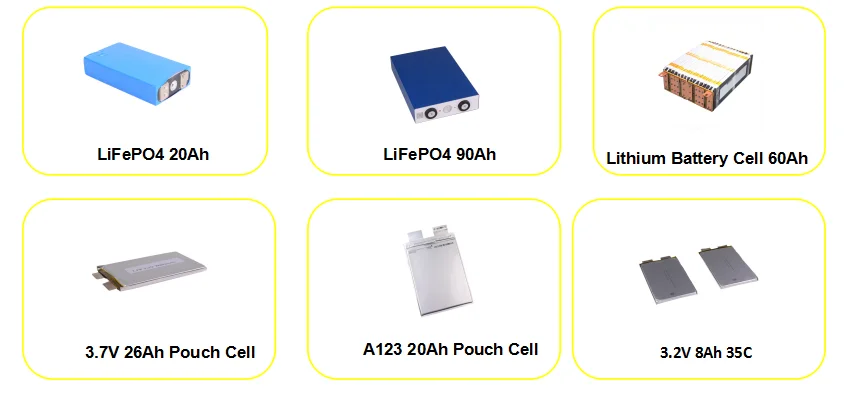

We choose brand Chinese to make lithium battery packs like LTO battery cells, cylindrical cells and prismatic battery cells as follows

3.2v 60ah lifepo4 battery cell 2C continuous discharge A grade lfp battery prismatic cell 60Ah

3.2v 60ah lifepo4 battery cell 2C continuous discharge A grade lfp battery prismatic cell 60Ah3.2v 60ah lifepo4 battery cell 2C continuous discharge A grade lfp battery prismatic cell 60Ah

Related Products

 We supply full range of Lithium battery cells ,also can customize battery pack according to your requirements .



3.2v 60ah lifepo4 battery cell 2C continuous discharge A grade lfp battery prismatic cell 60Ah

Applications

·  Passenger and commercial plug-in hybrid electric vehicles (PHEVs)

·  Passenger and commercial battery electric vehicles (BEVs)

·  Mild and micro hybrid vehicles

·  Long-Duration (LD) grid energy storage systems

1) Electric vehicles and charging stations, tourist coaches, yachts, wind and solar energy storage power, traffic signals

2) Solar hybrid street lighting, UPS power supply, home storage

3) Coal, disaster relief emergency, weather radar, electricity, smart grid, communication base stations

4) Hospitals, finance, telecommunications , system critical backup power systems

3.2v 60ah lifepo4 battery cell 2C continuous discharge A grade lfp battery prismatic cell 60Ah
