OSN Power’s products are widely used in applications where high C-rates, long cycle life and high energy density are required –such as Energy storage system, Marine, Golf cart ,Camper van.
High energy Density:More energy can be stored in the same space
Super Long Cycle life: More than 3500 times cycle life with 80%DOD
Easy to connection: Can be replaced directly, all case made by BCI standard.
Basic configuration: one 5.5KW inverter + 2* 7.92KWH batteries modules, that is 15.84KWH.
Our current ESS design is mainly for European market, each inverter can stack 13 max. battery modules, and max. 6 inverters can be paralleled. that is to say: 13*6=78 modules max to meet higher energy consumption.
LiFePO4 batteries are highly safe, have no risk of explosion and fire, and are environmentally friendly, non-toxic and non-polluting. No memory effect - the battery can be charged in any state of discharge, giving you peace of mind.
Nominal Voltage:3.2V
Nominal capacity:280Ah
Working voltage:2.5V~3.65V
AC impedance resistance(1khz):≤0.25mΩ
Max. pulse charge / discharge current: 2C (30S)
Dimension: 207(H)*72(T)*173.7(W)mm
Weight: 5.42+0.3kg
LiFePO4 batteries are highly safe, have no risk of explosion and fire, and are environmentally friendly, non-toxic and non-polluting. No memory effect - the battery can be charged in any state of discharge, giving you peace of mind.

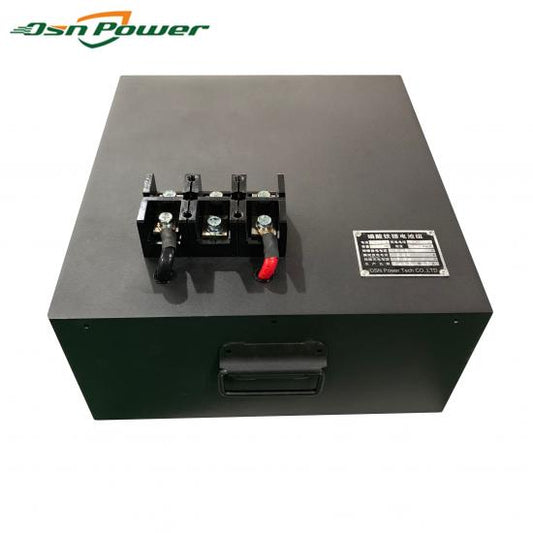

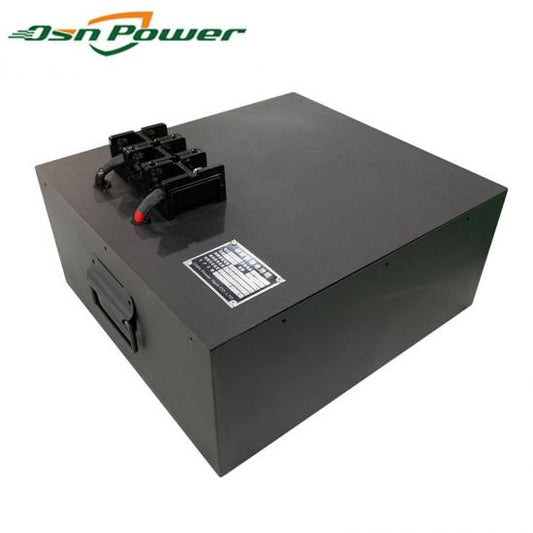

Nominal Voltage:51.2V
Nominal capacity:100Ah
Working voltage:2.0V~3.65V
AC impedance resistance(1khz):≤0.4mΩ
Max. pulse charge / discharge current: 200A/300A
Dimension: 460mm(L)*400(W)mm*232(H)mm
Weight: 51kg
LiFePO4 batteries are highly safe, have no risk of explosion and fire, and are environmentally friendly, non-toxic and non-polluting. No memory effect - the battery can be charged in any state of discharge, giving you peace of mind.
Nominal Voltage:3.2V
Nominal capacity:176Ah
Working voltage:2.5V~3.65V
AC impedance resistance(1khz):≤0.25mΩ
Max. pulse charge / discharge current: 2C (30S)
Dimension: 207(H)*53(T)*174(W)mm
Weight: 3.884kg
LiFePO4 batteries are highly safe, have no risk of explosion and fire, and are environmentally friendly, non-toxic and non-polluting. No memory effect - the battery can be charged in any state of discharge, giving you peace of mind.

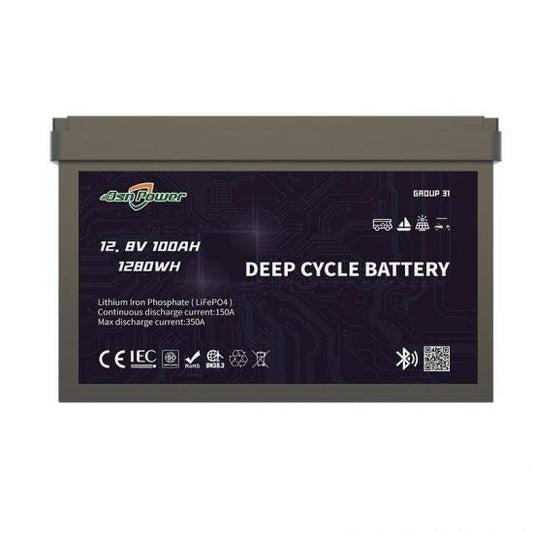

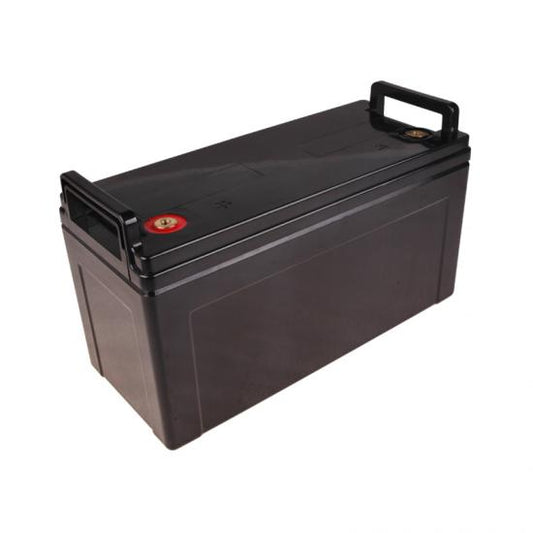

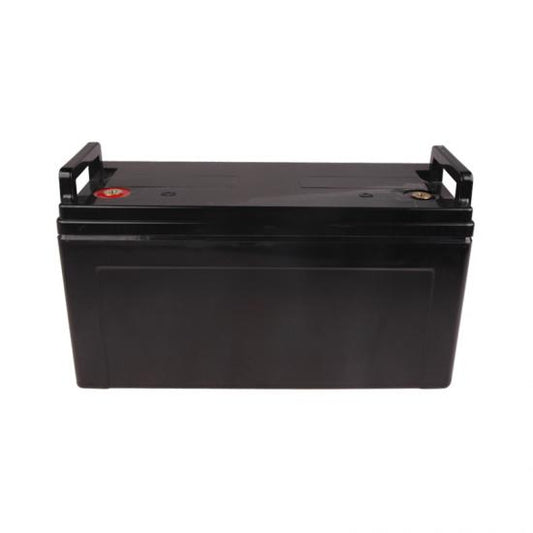

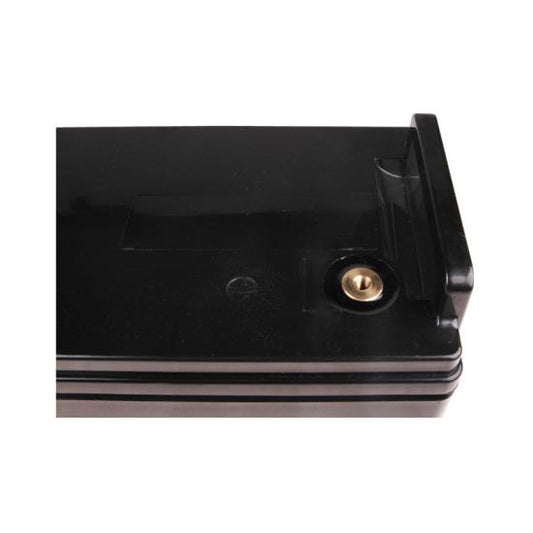

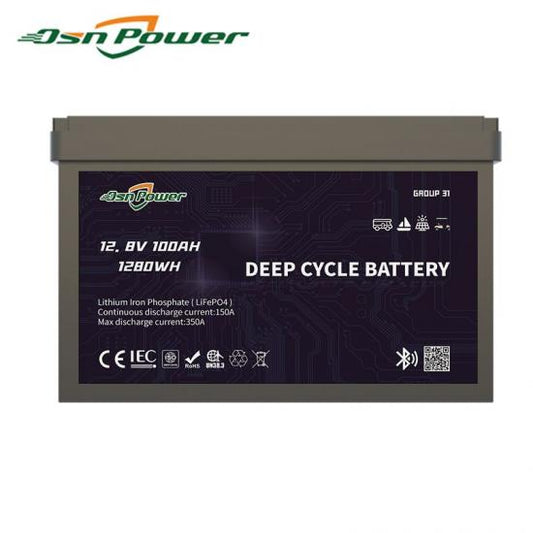

Nominal Voltage:12V
Nominal capacity:100Ah
Working voltage:2.0V~3.65V
AC impedance resistance(1khz):≤1mΩ
Max. pulse charge / discharge current: 500-800A
Dimension: 355mm(L)*175(W)mm*188(H)mm
Weight: 11kg
Why OSN POWER?
OSN Power stands for intelligent, top-quality, cost-effective ,reliable lithium battery solution.
OSN Power was established in 2008 year. With dedicated professionals and over 12 years of battery experience,OSN Power becomes leading battery factory in the design and manufacturing of high-tech battery systems for various applications.
We had won strategic cooperation with many battery manufacturers belongs to world's top 500 companies like Sony, Panasonic, LG, Samsung and the largest domestic automotive battery manufacturers. We are able to sustainable supply battery cells and customize battery packs flexiably. Battery models we produced are over 5000.
OSN Power consists of 4 manufacturing centers and 1 battery cell factory.
4 manufacturing centers specialized in producing battery packs for different applications:
Energy Storage/Telecom / E-mobility/ EV /Defense etc.
We are able to custom pouch cell with your requirements in our battery cell factory.
At OSN Power, all products are with top quality and tested before delivery. Meanwhile we offer every customer an Leading Warranty. A max 10 year limited warranty to the original purchaser against defects in quality under normal use, proper maintenance.
